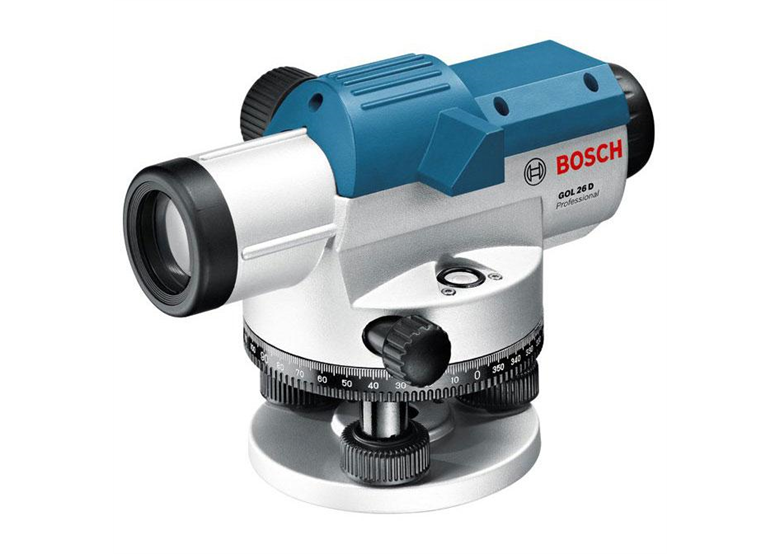

Optical Level Set Bosch GOL26D

Features

Designed for outdoor use due to sturdy metal housing with dust and splash protection (IP54)

Robust design with built in target collimator and intergrated circular vial

Carrying case with compensator for lock transport

Target collimator for rough alignment

Penta prism makes it easyto read the circular vial

Large focusing knob for easy alignment

Fast aperture for a sharp image of the target (measuring rod)

High precision (1.6 mm/30 m) over long distances

Endless angle setting using knobs on both sides with friction-braked rotation

Erect image

Specification

Unit of measure 360 degrees
Magnification 26x
Levelling accuracy 1.6 mm at 30 m mm/m
Working range 100 m
Dust and splash protection IP 54
Tripod thread 5/8"
Length 215 mm
Width 135mm
Height 145 mm
Weight 1,7 kg

Standard Equipment

GR500 Levelling Rod
BT160 Tripod
Lens cover
Plumb bob
Allen key
Adjusting pin
Carrying case

Warranty

Click above logo for details and to register your warranty; please note to qualify for the 3 year warranty you must register your tool within 4 weeks of purchase date
